Expression Node

The Expression node computes new fields from upstream values with formulas: a ratio, a rounded total, a tier label, a flag. Each output is a Jinja2 expression — the same syntax template variables use, without the braces — evaluated with the node's inputs as its names, and it returns the value itself, not rendered text: price * quantity is a number, 'A' if score < 0.5 else 'B' is a string. Use it where a Custom Function, the Python tool under Tools in the palette, would be a one-liner.

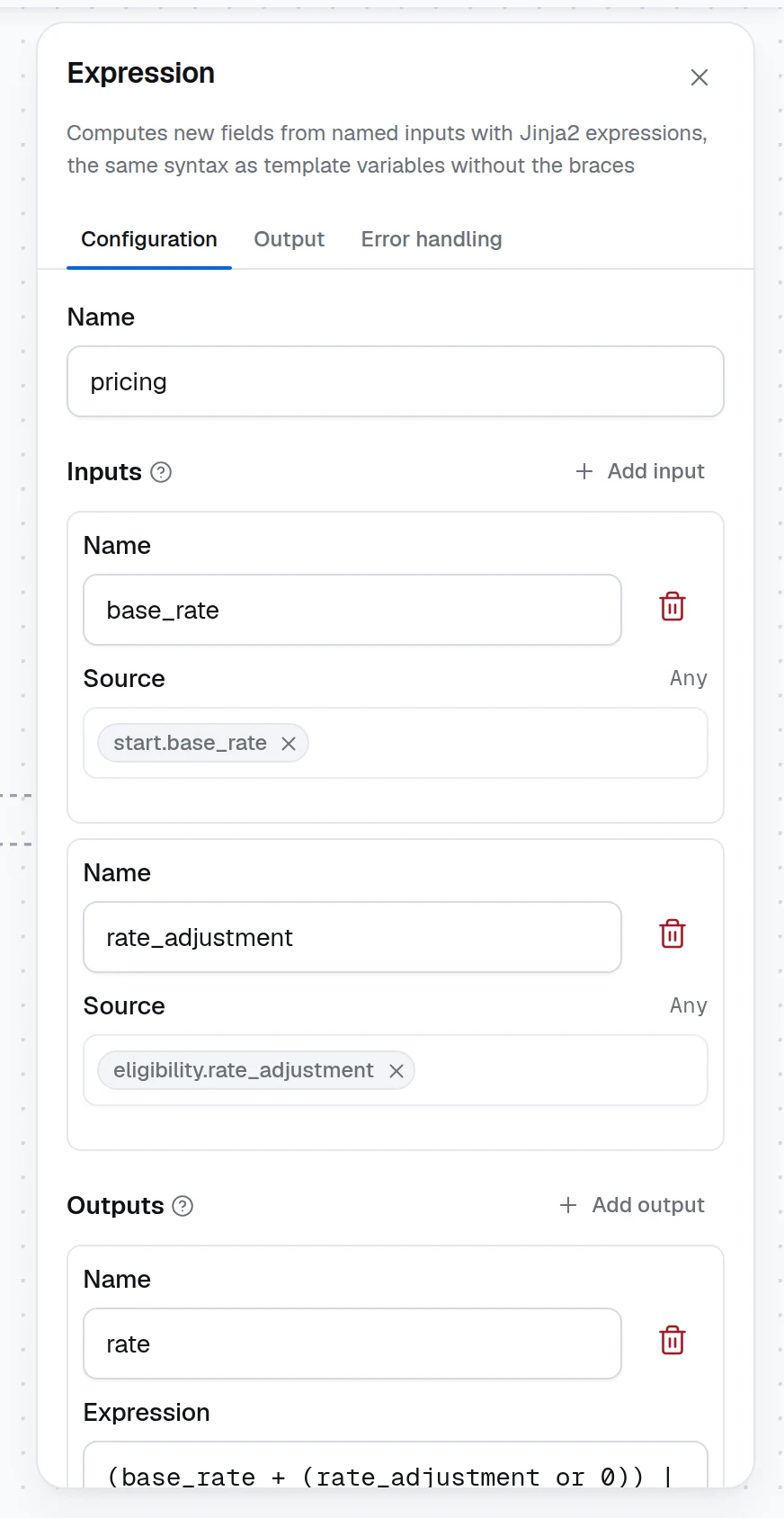

Configure an Expression on the canvas

What an expression can do

Anything a Jinja2 expression can: arithmetic and comparisons, string and list literals, if / else, and / or / not, in, attribute and item access on the inputs (applicant.fico, scores[0]; a record's key is read before a method of the same name, so invoice.items is the record's list), and the built-in filters — round, abs, length, lower, upper, trim, default, map, select, sum, min, max, join, int, float, string, list. The full list is in the Jinja2 documentation; the same syntax is covered from the prompt side in Input transformers and Jinja.

The helpers a Rules node can call work here too: has(value) for present and not null, days_between(start, end), date(value) for an ISO or MM/DD/YYYY string, today(), and len, abs, min, max, sum, round, so an SLA due date or a customer's tenure is one expression. An input named like one of them is the input where an expression reads it and the helper where an expression calls it.

Expressions run in a sandbox: they cannot change their inputs, reach into Python internals, or loop without bound. They are formulas, not code — for anything stateful or external, use a Custom Function.

Missing inputs

An input referred to on its own that is missing evaluates to null, so a plain reference never fails, and an input missing inside a list or an object the expression builds is null there too: [price, discount] without discount gives [2.5, null], and an expression that ends in map, select or selectattr returns a list whether or not | list closes it. A missing input used inside an operation fails the run — price * quantity without quantity reports 'quantity' is undefined. So does an input that arrives as null: base_rate + rate_adjustment fails when a Decision Table under All matching rules with Sum returned null because no rule matched.

Guard such values with (value or 0), which covers both a missing input and a present null. The | default(0) filter replaces only a missing name — a present null passes through it untouched and still fails the arithmetic — unless you write | default(0, true), which also replaces null and every other falsy value.

An input named self is the one name an expression cannot read: the expression engine reserves it, so the runtime refuses such an expression when the workflow is built, naming the output. The input still passes through, and a self key inside an object (payload.self.href) reads like any other.

A duplicate name or an empty expression is flagged in the panel and blocks Save and Test. A syntax error surfaces on the first test run, since expressions compile when the workflow is built: the error names the node and the output, and no run starts.

Worked example: price a loan

An upstream Decision Table eligibility returns rate_adjustment; the Input node carries base_rate:

With base_rate 6.5 and rate_adjustment 0.25 the node returns {"rate": 6.75, "tier": "A"}. Map rate and tier on the Output node and the caller gets both.

Runtime and SDK

The node is dynamiq.nodes.operators.Expression. Each expression compiles once, when the workflow is built, so a malformed one fails before any node runs; evaluation takes microseconds. The SDK class, the sandbox rules and the YAML form are in Expression.
